• Out of stock!
  • SQ1-NABC30-18OG
  • 850064815030

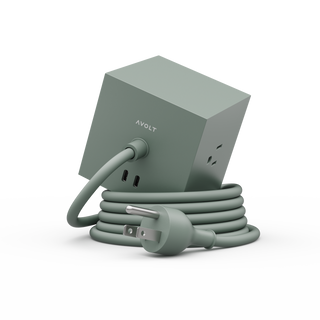

The updated Square 1 USBC is an iconic & minimalist power extender for homes, offices and public spaces that provides excellent function & utility. It has three Type B NEMA sockets, dual USB Type C ports offering up to 30W charging power, and a highly flexible 1.8m power cable. The base of the product is magnetic. It can be mounted securely on any surface when coupled with the included iron plate with a pre-applied adhesive strip. Made with the finest materials having exquisite finishes, the Square 1 USBC offers an uncompromising sense of quality & safety. Square 1’s design complements & visually matches all other products in AVOLT’s collection for a seamless experience.
Product Type/Technical Description Non-Rewireable multi socket power strip with dual USBC 30W charging ports.
Input Plug type NEMA 5-15P (Type B)
Output Socket type x3 NEMA 5-15R (Type B)
Input & Output Voltage range (VAC) 125
Input & Output Voltage frequency (Hz) 60
Maximum Output Load (Watts) 1875
Maximum Input & Output Current (A) 15
USB Connector type 2x USB Type C
Total USBC Shared Power Max 30Watts @ 5VDC. Max 3,1A (Shared between ports)
Single USB Port Power 30W MAX (5V⎓3A/9V⎓3A/12V⎓2.5A/15V⎓2A/20V⎓1.5A) PD3.0 compatible
USB output protection OVP/OCP/OTP/short circuit protection.
Cable length 1.8m / 6ft.
Cable material Soft touch PVC
Cable diameter 9.5mm
Enclosure size 76x76x76mm
Base feet material Silicone
Enclosure material Plastic (PC, ABS) (20% recycled content)
Base magnet YES
Certifications FCC, cTUVus, ROHS, REACH
Product weight 657 grams
Country of Origin P.R.C
Insulation class Class 1
IP rating IP20
Socket safety shutters YES
Operating temperature -10°C to 40°C
Idle Power Consumption (Watts) <1
